Workshop furniture 516 START (29)
Base unit with 6 drawers
new!
promo
- Fully opening drawers on telescopic ball bearing slides
- Opportunity to store 3 modules in each drawer
- Drawer handles i high resistant ABS
- Possibility of mounting lateral accessories of 516 AC series (from 516 AC1 to 516 AC8)
- Oil-proof rubber mats inside
- Centralized locking system
- Supplied with bottle holder system that can be positioned on the right or left side - spare part SER.SBN1
- Sheet steel casing and drawers with epoxy process, colour black RAL 9005
- Drawers can be equipped with separators 519 SB
- Maximum loading capacity: 1,000 kg
- Possibility to use the raising support 516 SA/11T, to increase height up to 1006 mm (including worktop)
- Possibility to use the adjustable feet 516 SA 15 when the floor is not perfectly level
- Drawer loading capacity: 20 kg for drawers h 60 mm, 25 kg for drawers h 130 mm and 30 kg for drawer h 200 mm
- Inside dimensions of the drawers:
3 drawers 570x420x60 mm
2 drawers 570x420x130 mm
1 drawer 570x420x200 mm
Base unit with 2 doors
new!
promo
- 1 internal shelf adjustable in height (70 mm step),resistant to a load of 50 kg
- Centralized locking system
- Sheet steel casing with epoxy process, colour black RAL 9005
- Possibility of mounting lateral accessories such as waste holder 519 RA1, bottle holder 519 RA5, document holder 519 RA2, roll holder 519 RA4
- Possibility to use the raising support 516 SA11T, to increase height up to 1006 mm (including worktop)
- Possibility to use the adjustable feet 516 SA/15 when the floor is not perfectly level
Cabinet with 1 door
new!
promo
- Door handle in high resistance ABS
- 3 internal shelves adjustable in height (70 mm step),resistant to a load of 50 kg
- 1 clothes hanging bar attached under a shelf
- Key lock
- Sheet steel casing with epoxy process, colour black RAL 9005
- Possibility to use the raising support 516 SA11T, to increase height up to 2000 mm (including worktop)
- Possibility to use the adjustable feet 516 SA/15 when the floor is not perfectly level
Base unit with bin and paper roll holder
new!
promo
- Recycle bin fitted with 2 pair of ball bearing slides: 75 liters capacity - 30kg load resistance
- Dedicated compartment for roll of paper and equipped with an easy cutting system (roll of paper Ø250 mm maximum)
- Open space for extra storage
- Possibility to use the raising support 516 SA11T, to increase height up to 1006 mm (including worktop)
- Possibility to use the adjustable feet 516 SA/15 when the floor is not perfectly level
- Possibility of mounting lateral accessories of 516 AC series (from 516 AC1 to 516 AC8).
- Structure in epoxy painted, colour black RAL 9005
Base unit with 7 drawers
new!
promo
- Fully opening drawers on telescopic ball bearing slides
- Opportunity to store 3 modules in each drawer
- Drawer handles i high resistant ABS
- Possibility of mounting lateral accessories of 516 AC series (from 516 AC1 to 516 AC8)
- Oil-proof rubber mats inside
- Centralized locking system
- Supplied with bottle holder system that can be positioned on the right or left side - spare part SER.SBN1
- Sheet steel casing and drawers with epoxy process, colour black RAL 9005
- Drawers can be equipped with separators 519 SB
- Maximum loading capacity: 1,000 kg
- Possibility to use the raising support 516 SA/11T, to increase height up to 1006 mm (including worktop)
- Possibility to use the adjustable feet 516 SA 15 when the floor is not perfectly level
- Drawer loading capacity: 20 kg for drawers h 60 mm, 25 kg for drawers h 130 mm and 30 kg for drawer h 200 mm
- Inside dimensions of the drawers:
5 drawers 570x420x60 mm
1 drawers 570x420x130 mm
1 drawer 570x420x200 mm
Cabinet with 2 doors
new!
promo
- Door handle in high resistance ABS
- 3 internal shelves adjustable in height (175 mm step),resistant to a load of 75 kg
- 1 clothes hanging bar attached under a shelf
- Key lock
- Sheet steel casing with epoxy process, colour black RAL 9005
- Possibility to use the raising support 516 SA11T, to increase height up to 2000 mm (including worktop)
- Possibility to use the adjustable feet 516 SA/15 when the floor is not perfectly level
Pegboard with power strip
new!
promo
- 6x6 mm square drilling, with 12 mm pitch
- Supplied with with a group of 3 SCHUKO sockets and 2 USB doors with luminous switch
- Positioning of tools by means of hooks and supports (516 SA/K1 - 516 SA/K7)
- Sheet steel casing with epoxy process, color black RAL 9005, 1.2 mm thick
- Easy and quick to fasten with the fitting kit 516 SA14T

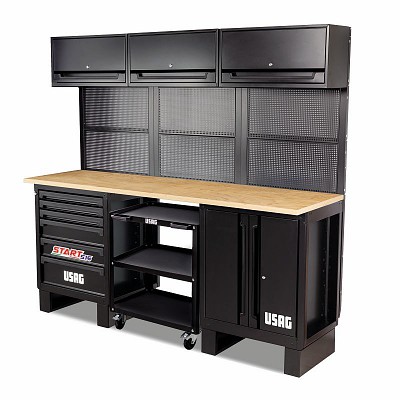

Workshop furniture with steel top
new!
promo
- Supplied with 30 hooks (kit 516 SA/K1)
- Complete range of hooks and supports at page 183
Workshop furniture with wooden top
new!
promo
- Supplied with 30 hooks (kit 516 SA/K1)
- Complete range of hooks and supports at page 183
Workshop furniture with steel top
new!
promo
- Supplied with 30 hooks (kit 516 SA/K1)
- Complete range of hooks and supports at page 183
Workshop furniture with wooden top
new!
promo
- Supplied with 30 hooks (kit 516 SA/K1)
- Complete range of hooks and supports at page 183
Workshop furniture with steel top
new!
promo
- Supplied with 30 hooks (kit 516 SA/K1)
- Complete range of hooks and supports at page 183
Workshop furniture with wooden top
new!
promo
- Supplied with 30 hooks (kit 516 SA/K1)
- Complete range of hooks and supports at page 183
Workshop furniture with steel top
new!
promo
- Supplied with 30 hooks (kit 516 SA/K1)
- Complete range of hooks and supports at page 183
Workshop furniture with wooden top
new!
promo
- Supplied with 30 hooks (kit 516 SA/K1)
- Complete range of hooks and supports at page 183
