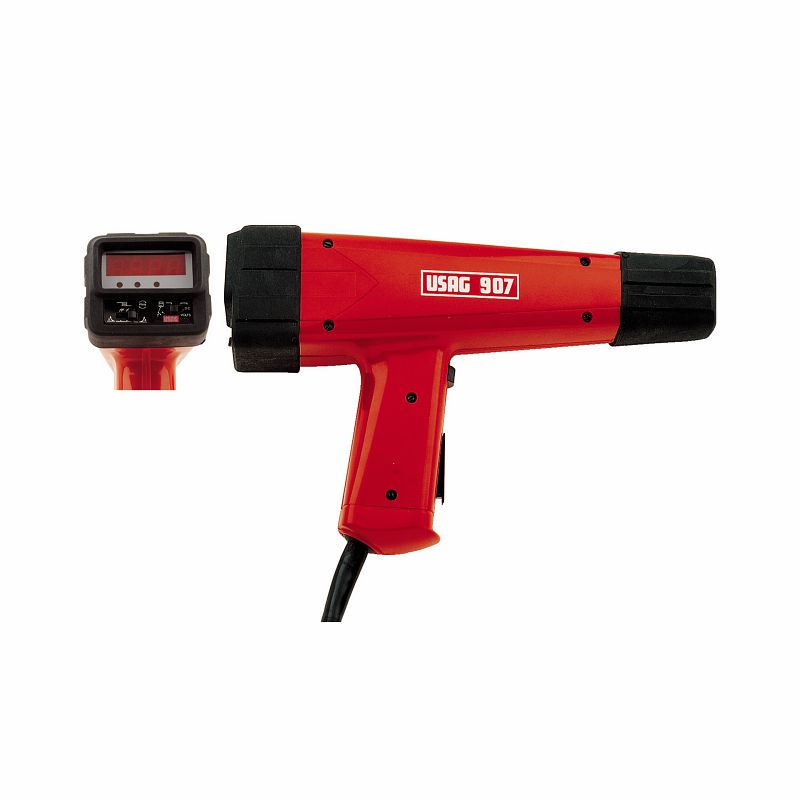

Digital timing light

Name: 907 N
Brand: Stanley Black & Decker Italia S.r.l.
Price: 596

907 N

en dk es fr nl no pt gr hu tr ru pl de

For the stroboscopic visualization of the spark lead marks
Suitable for 2 or 4 stroke engines until 2 sparks/rpm
Reading memory
Supplied in plastic box with cables and crocodile clips

Features

RPM	400÷19.999
Direct and peak voltage (V)	1÷70
Power supply (V)	9,5÷15
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
Timing advance	0÷78°/90° (400/465)
Timing revolutions counter	60÷600
Vitesse (tours/minute)	400÷19.999
Tension continue et de crête (V)	1÷70
Alimentation (V)	9,5÷15
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
Avance stroboscopique (tours/minute)	0÷78°/90° (400/465)
Avance estroboscópico (giros/min)	0÷78°/90° (400/465)
Vueltas (giros/min)	400÷19.999
Tensión continua y de pico (V)	1÷70
Alimentación (V)	9,5÷15
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
conta-rotações (rpm)	60÷600
Avanço estroboscópico (rpm)	0÷78°/90° (400/465)
rotações (rpm)	400÷19.999
voltagem contínua e do pico (V)	1÷70
Alimentação (V)	9,5÷15
voeding (V)	9,5÷15
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
toerentalopname (t.p.m.)	60÷600
voorontsteking (t.p.m.)	0÷78°/90° (400/465)
toerental (t.p.m.)	400÷19.999
τάση συνεχής και μέγιστη (V)	1÷70
τροφοδοσία (V)	9,5÷15
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
στροβοσκοπικό στροφόμετρο (στροφές/λεπτό)	60÷600
στροβοσκοπικό αβάνς (στροφές/λεπτό)	0÷78°/90° (400/465)
RPM fordulatszám	400÷19.999
közvetlen és kóbor feszültség (V)	1÷70
tápfeszültség (V)	9,5÷15
zárásszög	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
fordulatszám mérő	60÷600
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
Zamanlama dönme sayacı	60÷600
Zamanlama avansı	0÷78°/90° (400/465)
RPM	400÷19.999
Doğru ve pik gerilim (V)	1÷70
регулировка счетчика оборотов (об./мин.)	60÷600
регулировка угла опережения (об./мин.)	0÷78°/90° (400/465)
обороты в минуту (об./мин.)	400÷19.999
прямое и пиковое напряжение (V)	1÷70
электрическое питание от сети (V)	9,5÷15
likespenning og maks. Spenning (V)	1÷70
strømforyning (V)	9,5÷15
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
omdreiningsteller (o/min)	60÷600
tidsforskyvning (o/min)	0÷78°/90° (400/465)
jævnspænding og spidsspænding (V)	1÷70
strømforsyning (V)	9,5÷15
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
omdrejningsmåler (omdr./min.)	60÷600
fortændingsmåler (omdr./min.)	0÷78°/90° (400/465)
Timing advance	0÷78°/90° (400/465)
RPM	400÷19.999
Direct and peak voltage (V)	1÷70
Power supply (V)	9,5÷15
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
Timing revolutions counter	60÷600
Timing advance	0÷78°/90° (400/465)
RPM	400÷19.999
Direct and peak voltage (V)	1÷70
Power supply (V)	9,5÷15
Power supply (V)	9,5÷15
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
Timing revolutions counter	60÷600
Timing advance	0÷78°/90° (400/465)
RPM	400÷19.999
Direct and peak voltage (V)	1÷70
Power supply (V)	9,5÷15
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
Timing revolutions counter	60÷600
Timing advance	0÷78°/90° (400/465)
RPM	400÷19.999
Direct and peak voltage (V)	1÷70
Power supply (V)	9,5÷15
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)
Timing revolutions counter	60÷600
Timing advance	0÷78°/90° (400/465)
RPM	400÷19.999
Direct and peak voltage (V)	1÷70
Power supply (V)	9,5÷15
DWELL	0÷65 ms 0÷100% 0÷120° (> 600 giri/min)

Family details

Code	Weight kg	Quantity for packaging
Code	Poids kg	Q.té par colis
Code	Peso kg	Cantidad por confección
Code	Peso kg	Número de peças por caixa
Code	gewicht kg	Hoeveelheid per pakket
Code	Weight kg	Quantity for packaging
Code	Weight kg	Quantity for packaging
Code	Weight kg	Quantity for packaging
Code	Weight kg	Quantity for packaging
Code	vekt kg	mengde per pakke
Code	vægt kg	Mængde pr. pakke
Code	Weight kg	Quantity for packaging
Code	Weight kg	Quantity for packaging
Code	Weight kg	Quantity for packaging
Code	Weight kg	Quantity for packaging
Code	Weight kg	Quantity for packaging
Code	Weight kg	Quantity for packaging
U09070080	1,7	1
