Products
910 EL1 1

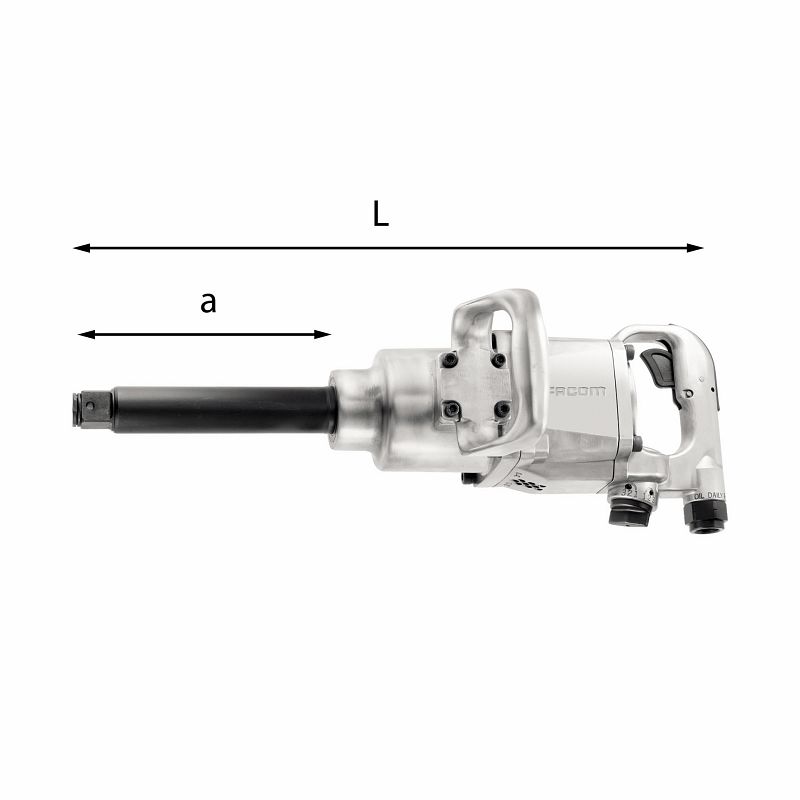

Aluminium impact wrench
910 EL1 1
- Reversible model with double hammer mechanism
- Three power settings for thighening and untightening
- Spare rotor blades (6 pieces): code 31K100048
- Three power settings for thighening and untightening
- Spare rotor blades (6 pieces): code 31K100048
- Reversibel model med dobbelt hammermekanisme
- Tre effektindstillinger til at spænde fast og løsne
- Reserverotorblade (6 stk.): Kode 31K100048
- Tre effektindstillinger til at spænde fast og løsne
- Reserverotorblade (6 stk.): Kode 31K100048
- Modelo reversible con mecanismo de doble martillo
- Tres opciones de potencia para apretar y desapretar
- Hojas sueltas del rotor (6 unidades): código 31K100048
- Tres opciones de potencia para apretar y desapretar
- Hojas sueltas del rotor (6 unidades): código 31K100048
- Modèle réversible avec mécanisme à double marteau
- Trois réglages de puissance pour le serrage et le desserrage
- Pales de rotor de rechange (6 pièces) : code 31K100048
- Trois réglages de puissance pour le serrage et le desserrage
- Pales de rotor de rechange (6 pièces) : code 31K100048
• Omkeerbaar model met dubbele hamer
• Drie standen voor aandraaien en losdraaien
• Reserve rotorbladen (6 stuks): code 31K100048
• Drie standen voor aandraaien en losdraaien
• Reserve rotorbladen (6 stuks): code 31K100048
• Reverserbar modell med med dobbel hammermekanisme
• Tre kraftinnstillinger for å stramme og løsne
• Reserve rotorblad (6 stk.): kode 31K100048
• Tre kraftinnstillinger for å stramme og løsne
• Reserve rotorblad (6 stk.): kode 31K100048
• Modelo reversível com mecanismo de duplo martelo
• Três definições de potência para aperto e desaperto
• Lâminas do rotor de substituição (6 peças): código 31K100048
• Três definições de potência para aperto e desaperto
• Lâminas do rotor de substituição (6 peças): código 31K100048
- Με αναστροφή φοράς περιστροφής και διπλό κρουστικό μηχανισμό
- Τρεις ρυθμίσεις ισχύος για σύσφιξη και αποσύσφιξη
- Εφεδρικές λάμες ρότορα (6 τεμ.): κωδικός 31K100048
- Τρεις ρυθμίσεις ισχύος για σύσφιξη και αποσύσφιξη
- Εφεδρικές λάμες ρότορα (6 τεμ.): κωδικός 31K100048
• Szabályozható menetirányú, kétkalapácsos szerkezet
• Három teljesítményfokozat a behajtáshoz és kihajtáshoz
• Tartalék rotorlapátok (6 darab); kód: 31K100048
• Három teljesítményfokozat a behajtáshoz és kihajtáshoz
• Tartalék rotorlapátok (6 darab); kód: 31K100048
- Çift çekiç mekanizmalı ters çevrilebilir model
- Sıkma ve gevşetme için üç farklı güç ayarı
- Yedek rotor kanatları (6 parça): kod 31K100048
- Sıkma ve gevşetme için üç farklı güç ayarı
- Yedek rotor kanatları (6 parça): kod 31K100048
• Реверсивная модель с двойным ударным механизмом
• Три настройки мощности для затягивания и ослабления
• Запасные лопасти ротора (6 шт.): код 31K100048
• Три настройки мощности для затягивания и ослабления
• Запасные лопасти ротора (6 шт.): код 31K100048
- Rechts-/Linksgang mit Doppelschlagwerk
- Drei Leistungsstufen zum Festziehen und Lösen
- Ersatzrotorblätter (6 Stück): Code 31K100048
- Model dwukierunkowy z podwójnym mechanizmem udarowym
- Trzy ustawienia mocy do dokręcania i odkręcania
- Zapasowe łopatki wirnika (6 sztuk): kod 31K100048
- Trzy ustawienia mocy do dokręcania i odkręcania
- Zapasowe łopatki wirnika (6 sztuk): kod 31K100048
- Reverzibilni model s mehanizmom dvostrukog čekića
- Tri postavke snage za zatezanje i otpuštanje
- Rezervne oštrice rotora (6 kom.): kod 31K100048
- Tri postavke snage za zatezanje i otpuštanje
- Rezervne oštrice rotora (6 kom.): kod 31K100048
- Model s chodem vpřed/vzad a dvojitým rázovým mechanismem
- Tři nastavení výkonu pro utahování a povolování
- Náhradní lopatky rotoru (6 kusů): kód 31K100061
- Tři nastavení výkonu pro utahování a povolování
- Náhradní lopatky rotoru (6 kusů): kód 31K100061
- Реверсивен модел с двоен ударен механизъм
- Три степени на мощността за затягане и разхлабване
- Резервни роторни лопатки (6 броя): код 31K100048
- Три степени на мощността за затягане и разхлабване
- Резервни роторни лопатки (6 броя): код 31K100048
- Reverzibilni model sa dvostrukim udarnim mehanizmom
- Tri podešavanja snage za zavrtanje i odvrtanje
- Rezervni rotacioni nastavci (6 kom.): šifra 31K100048
- Tri podešavanja snage za zavrtanje i odvrtanje
- Rezervni rotacioni nastavci (6 kom.): šifra 31K100048
- Model reversibil cu mecanism cu două ciocane
- 3 viteze pentru înfiletare și desfiletare
- Lamele de schimb pentru rotor (6 buc.): code 31K100048
Aluminium impact wrenchSlagnøgle af aluminiumLlave de impacto de aluminioClé à chocs en aluminiumAluminium slagmoersleutelAluminium muttertrekkerChave de impacto de alumínioΑερόκλειδο αλουμινίουAlumínium, ütőműves csavarbehajtó gépAlüminyum darbeli somun sökme anahtarıАлюминиевый ударный гайковертAluminium-SchlagschrauberAluminiowy klucz udarowyAluminijski udarni ključHliníkový rázový utahovákАлуминиев ударен гайковертPneumatski pistolj sa kućištem od aluminijumaCheie pneumatică din aluminiu- 3 viteze pentru înfiletare și desfiletare
- Lamele de schimb pentru rotor (6 buc.): code 31K100048
Features
| Strokes per minute | 720 |
| Square drive (") | 1 |
| Air inlet (") | 1/2 |
| Recommended air pressure (bar) | 6,2 |
| Torque in use (Nm min-Max) | 850÷1300 |
| Average air consumption (l/min) | 243 |
| Vibrations (m/s²) | 16,70 |
| Sound power dB(A) | 114 ±3 |
| Max torque (Nm) | 4068 |
| Free speed (rpm) | 4400 |
| Sound level dB(A) | 103 ±3 |
| Ø hose size (mm) | 13 |
| Bolt capacity | M33 |
| Ø minimum intérieur du tuyau d'air (mm) | 13 |
| Capacité | M33 |
| Coups par minute (tours/minute) | 720 |
| Connexion carrée (") | 1 |
| Admission taraudée (") | 1/2 |
| Pression d'utilisation (bar) | 6,2 |
| Couple de travail (Nm min-max) | 850÷1300 |
| Consommation moyenne d'air (l/min) | 243 |
| Niveau vibrations (m/s²) | 16,70 |
| Puissance sonore dB(A) | 114 ±3 |
| Couple maximum (Nm) | 4068 |
| Vitesse (tours/minute) | 4400 |
| Diámetro interno minimo del tubo aire (mm) | 13 |
| Par máximo (Nm) | 4068 |
| Velocidad (giros/min) | 4400 |
| Capacidad | M33 |
| Impactos/minuto (giros/min) | 720 |
| Square drive (") | 1 |
| Conexión fileteada (") | 1/2 |
| Présion ejercida (bar) | 6,2 |
| Par de apriete (Nm min-Max) | 850÷1300 |
| Nivel vibraciones (m/s²) | 16,70 |
| Consumo medio aire (l/min) | 243 |
| Sound power dB(A) | 114 ±3 |
| nível vibrações (m/s²) | 16,70 |
| consumo médio de ar (l/min) | 243 |
| Sound power dB(A) | 114 ±3 |
| Sound level dB(A) | 103 ±3 |
| diâmetro interno mínimo do tubo de ar (mm) | 13 |
| binário máximo (Nm) | 4068 |
| velocidade (rpm) | 4400 |
| Capacidade | M33 |
| batimentos por minuto (rpm) | 720 |
| Square drive (") | 1 |
| Ligação rosca (") | 1/2 |
| pressão exercida (bar) | 6,2 |
| werkdruk (bar) | 6,2 |
| koppelbereik (Nm min-max) | 850÷1300 |
| trillingsniveau (m/s²) | 16,70 |
| gemiddeld luchtverbruik (l/min) | 243 |
| Sound power dB(A) | 114 ±3 |
| Sound level dB(A) | 103 ±3 |
| minimum inwendige slangdiameter (mm) | 13 |
| maximum koppel (Nm) | 4068 |
| onbelast toerental (t.p.m.) | 4400 |
| capaciteit | M33 |
| aantal slagen per minuut (t.p.m.) | 720 |
| Square drive (") | 1 |
| κρούσεις ανά λεπτό (στροφές/λεπτό) | 720 |
| Square drive (") | 1 |
| σπείρωμα εισόδου (") | 1/2 |
| πίεση λειτουργίας (bar) | 6,2 |
| Torque in use (Nm min-Max) | 850÷1300 |
| επίπεδο κραδασμών (m/s²) | 16,70 |
| μέση κατανάλωση αέρα (l/min) | 243 |
| Sound power dB(A) | 114 ±3 |
| Sound level dB(A) | 103 ±3 |
| ελάχιστη εσωτερική Ø σωλήνας αέρα (mm) | 13 |
| μέγιστη ροπή (Nm) | 4068 |
| ταχύτητα (στροφές/λεπτό) | 4400 |
| sebesség | 4400 |
| Csavar kapacitás | M33 |
| löketszám/perc | 720 |
| Square drive (") | 1 |
| Levegő csatlakozás (") | 1/2 |
| levegő nyomás (bar) | 6,2 |
| Nyomaték tartomány (Nm min-max) | 850÷1300 |
| rezgésszint (m/s²) | 16,70 |
| átlagos levegő fogyasztás (l/min) | 243 |
| Sound power dB(A) | 114 ±3 |
| Sound level dB(A) | 103 ±3 |
| Ø min. cső méret (mm) | 13 |
| Sound level dB(A) | 103 ±3 |
| titreşim seviyesi (m/s²) | 16,70 |
| ortalama hava tüketimi (l/min) | 243 |
| Ø en düşük hortum ebatı (mm) | 13 |
| Maksimum tork (Nm) | 4068 |
| kapasite | M33 |
| hız | 4400 |
| Square drive (") | 1 |
| Dakikadaki vuruş | 720 |
| Tork aralığı (Nm min-Max) | 850÷1300 |
| Hava Girişi (") | 1/2 |
| hava basıncı (bar) | 6,2 |
| среднее потребление сжатого воздуха (l/min) | 243 |
| мин. диаметр шланга/мин. Ø шланга (mm) | 13 |
| диапазон крутящего момента (Nm мин-Макс) | 850÷1300 |
| макс. вращающий момент (Nm) | 4068 |
| Sound power dB(A) | 114 ±3 |
| скорость (об./мин.) | 4400 |
| Sound level dB(A) | 103 ±3 |
| ход поршня в минуту | 720 |
| производительность | M33 |
| Резьба на впуске воздуха (") | 1/2 |
| давление воздуха (bar) | 6,2 |
| Square drive (") | 1 |
| slag/min. (o/min.) | 720 |
| momentområde (Nm min-Max) | 850÷1300 |
| tilslutningsgjenger (") | 1/2 |
| lufttrykk (bar) | 6,2 |
| Lydkraft dB(A) | 114 ±3 |
| Lydnivå dB(A) | 103 ±3 |
| vibrasjonsnivå (m/s²) | 16,70 |
| gjennomsnitt luftforbruk (l/min) | 243 |
| min. slange diameter (mm) | 13 |
| maks. Moment (Nm) | 4068 |
| turtall (o/min) | 4400 |
| kapasitet | M33 |
| Boltkapacitet | M33 |
| Forskruning (“) | 1/2 |
| Lufttryk (bar) | 6,2 |
| Firkantet drev (") | 1 |
| vibrationsniveau (m/s²) | 16,70 |
| luftforbrug (l/min) | 243 |
| slangedim. (mm) | 13 |
| moment i brug (Nm min-Maks) | 850÷1300 |
| maks. Moment (Nm) | 4068 |
| Lydeffekt dB(A) | 114 ±3 |
| hastighed (omdr./min.) | 4400 |
| Sound level dB(A) | 103 ±3 |
| Ø hose size (mm) | 13 |
| Max torque (Nm) | 4068 |
| Free speed (rpm) | 4400 |
| Bolt capacity | M33 |
| Strokes per minute | 720 |
| Square drive (") | 1 |
| Recommended air pressure (bar) | 6,2 |
| Air inlet (") | 1/2 |
| Torque in use (Nm min-Max) | 850÷1300 |
| Vibrations (m/s²) | 16,70 |
| Average air consumption (l/min) | 243 |
| Sound power dB(A) | 114 ±3 |
| Vibrations (m/s²) | 16,70 |
| Average air consumption (l/min) | 243 |
| Sound power dB(A) | 114 ±3 |
| Sound level dB(A) | 103 ±3 |
| Ø hose size (mm) | 13 |
| Max torque (Nm) | 4068 |
| Otočky za minutu (rpm) | 4400 |
| Bolt capacity | M33 |
| Strokes per minute | 720 |
| Square drive (") | 1 |
| Recommended air pressure (bar) | 6,2 |
| Air inlet (") | 1/2 |
| Air inlet (") | 1/2 |
| Torque in use (Nm min-Max) | 850÷1300 |
| Vibrations (m/s²) | 16,70 |
| Average air consumption (l/min) | 243 |
| Sound power dB(A) | 114 ±3 |
| Sound level dB(A) | 103 ±3 |
| Ø hose size (mm) | 13 |
| Max torque (Nm) | 4068 |
| Скорост | 4400 |
| Капацитет | M33 |
| Strokes per minute | 720 |
| Square drive (") | 1 |
| Prihvat (") | 1 |
| Udara u minuti | 720 |
| Max. Pritisak (bar) | 6,2 |
| Ulaz vazduha (") | 1/2 |
| Opseg snage stezanja (Nm min-Max) | 850÷1300 |
| Vibrations (m/s²) | 16,70 |
| Prosečna potrošnja vazduha (l/mm) | 243 |
| Snaga zvuka dB(A) | 114 ±3 |
| Nivo buke dB(A) | 103 ±3 |
| Unutrašnji prečnik (mm) | 13 |
| Maksimalna snaga stezanja (Nm) | 4068 |
| Slobodna brzina (l/min) | 4400 |
| Bolt capacity | M33 |
| Pătrat de acționare | 1 |
| Bătăi pe minut | 720 |
| Presiunea aerului (bar) | 6,2 |
| Air inlet (") | 1/2 |
| Torque in use (Nm min-Max) | 850÷1300 |
| Nivel de vibraţii (m/s²) | 16,70 |
| Average air consumption (l/min) | 243 |
| Puterea zgomotului dB(A) | 114 ±3 |
| Nivelul zgomotului dB(A) | 103 ±3 |
| Ø hose size (mm) | 13 |
| Max torque (Nm) | 4068 |
| Sound level dB(A) | 103 ±3 |
| Ø węża wewnętrznego (mm) | 13 |
| Max torque (Nm) | 4068 |
| Free speed (rpm) | 4400 |
| Bolt capacity | M33 |
| Square drive (") | 1 |
| Strokes per minute | 720 |
| Zalecane ciśnienie powietrza (bar) | 6,2 |
| Wlot powietrza (") | 1/2 |
| Torque in use (Nm min-Max) | 850÷1300 |
| Wibracje (m/s²) | 16,70 |
| Średnie zużycie powietrza (l/min) | 243 |
| Sound power dB(A) | 114 ±3 |
| Sound level dB(A) | 103 ±3 |
| Square drive (") | 1 |
Family details
| Code | LxPxH mm | a mm |  Weight kg |  Quantity for packaging |
|---|---|---|---|---|
| Code | LxPxH mm | a mm | Poids kg | Q.té par colis |
| Code | LxPxH mm | a mm | Peso kg | Cantidad por confección |
| Code | LxPxH mm | a mm | Peso kg | Número de peças por caixa |
| Code | LxPxH mm | a mm | gewicht kg | Hoeveelheid per pakket |
| Code | LxPxH mm | a mm | Weight kg | Quantity for packaging |
| Code | LxPxH mm | a mm | Weight kg | Quantity for packaging |
| Code | LxPxH mm | a mm | Weight kg | Quantity for packaging |
| Code | LxPxH mm | a mm | Weight kg | Quantity for packaging |
| Code | LxPxH mm | a mm | vekt kg | mengde per pakke |
| Code | LxPxH mm | a mm | vægt kg | Mængde pr. pakke |
| Code | LxPxH mm | a mm | Weight kg | Quantity for packaging |
| Code | LxPxH mm | a mm | Weight kg | Quantity for packaging |
| Code | LxPxH mm | a mm | Weight kg | Quantity for packaging |
| Code | LxPxH mm | a mm | Weight kg | Quantity for packaging |
| Code | LxPxH mm | a mm | Weight kg | Quantity for packaging |
| Code | LxPxH mm | a mm | Weight kg | Quantity for packaging |
| U09100023 | 523x202x172 | 170 | 11,3 | 1 |
