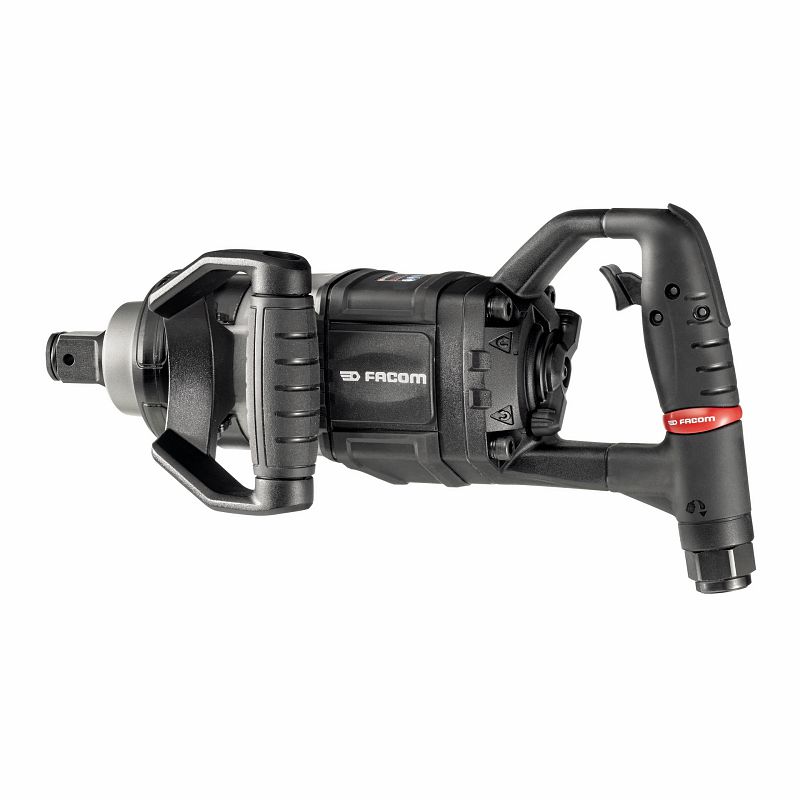

Reversible straight impact wrench (composite material frame)

Name: 942 PE2 1
Brand: Stanley Black & Decker Italia S.r.l.
Price: 1118

942 PE2 1

en hu pt fr tr ru no es nl gr dk hr cz bg rs ro pl de

- Lightweight and balanced for easy use, only 8 Kg
- Reversible model with double hammer
- Progressive trigger
- Air exhaust through the handle, at 45°
- 2 tightening torque settings, always maximum untightening power
- Soft-touch bimaterial grip
- Additional soft-touch bimaterial handle allows strong and firm grip
- Socket retaining system on square drive with holding ring and hole to be used with lock pin and safety ring
- Spare rotor blades (6 pieces): code 30M200147

Features

Square drive (")	1
Strokes per minute	1000
Recommended air pressure (bar)	6,2
Air inlet (")	1/2
Torque in use (Nm min-Max)	203÷1627
Vibrations (m/s²)	14,75
Average air consumption (l/min)	480
Sound power dB(A)	115,4 ±3
Max torque (Nm)	3390
Free speed (rpm)	5000
Ø hose size (mm)	19
Sound level dB(A)	104,4 ±3
Bolt capacity	M38
Pression sonore dB(A)	104,4 ±3
Capacité	M38
Connexion carrée (")	1
Coups par minute (tours/minute)	1000
Pression d'utilisation (bar)	6,2
Admission taraudée (")	1/2
Couple de travail (Nm min-max)	203÷1627
Niveau vibrations (m/s²)	14,75
Consommation moyenne d'air (l/min)	480
Puissance sonore dB(A)	115,4 ±3
Couple maximum (Nm)	3390
Vitesse (tours/minute)	5000
Diámetro interno minimo del tubo aire (mm)	19
Par máximo (Nm)	3390
Velocidad (giros/min)	5000
Capacidad	M38
Impactos/minuto (giros/min)	1000
Square drive (")	1
Présion ejercida (bar)	6,2
Conexión fileteada (")	1/2
Par de apriete (Nm min-Max)	203÷1627
Nivel vibraciones (m/s²)	14,75
Consumo medio aire (l/min)	480
Sound power dB(A)	115,4 ±3
nível vibrações (m/s²)	14,75
consumo médio de ar (l/min)	480
Sound power dB(A)	115,4 ±3
Sound level dB(A)	104,4 ±3
diâmetro interno mínimo do tubo de ar (mm)	19
binário máximo (Nm)	3390
velocidade (rpm)	5000
Capacidade	M38
batimentos por minuto (rpm)	1000
Square drive (")	1
pressão exercida (bar)	6,2
Ligação rosca (")	1/2
luchtinlaataansluiting (")	1/2
koppelbereik (Nm min-max)	203÷1627
gemiddeld luchtverbruik (l/min)	480
trillingsniveau (m/s²)	14,75
Sound power dB(A)	115,4 ±3
Sound level dB(A)	104,4 ±3
minimum inwendige slangdiameter (mm)	19
maximum koppel (Nm)	3390
onbelast toerental (t.p.m.)	5000
capaciteit	M38
aantal slagen per minuut (t.p.m.)	1000
Square drive (")	1
κρούσεις ανά λεπτό (στροφές/λεπτό)	1000
Square drive (")	1
πίεση λειτουργίας (bar)	6,2
σπείρωμα εισόδου (")	1/2
Torque in use (Nm min-Max)	203÷1627
μέση κατανάλωση αέρα (l/min)	480
επίπεδο κραδασμών (m/s²)	14,75
Sound power dB(A)	115,4 ±3
Sound level dB(A)	104,4 ±3
ελάχιστη εσωτερική Ø σωλήνας αέρα (mm)	19
μέγιστη ροπή (Nm)	3390
ταχύτητα (στροφές/λεπτό)	5000
sebesség	5000
Csavar kapacitás	M38
löketszám/perc	1000
Square drive (")	1
levegő nyomás (bar)	6,2
Levegő csatlakozás (")	1/2
Nyomaték tartomány (Nm min-max)	203÷1627
átlagos levegő fogyasztás (l/min)	480
rezgésszint (m/s²)	14,75
Sound power dB(A)	115,4 ±3
Sound level dB(A)	104,4 ±3
Ø min. cső méret (mm)	19
Sound level dB(A)	104,4 ±3
ortalama hava tüketimi (l/min)	480
titreşim seviyesi (m/s²)	14,75
Ø en düşük hortum ebatı (mm)	19
Maksimum tork (Nm)	3390
kapasite	M38
hız	5000
Square drive (")	1
Dakikadaki vuruş	1000
Tork aralığı (Nm min-Max)	203÷1627
hava basıncı (bar)	6,2
Hava Girişi (")	1/2
уровень вибрации (m/s²)	14,75
мин. диаметр шланга/мин. Ø шланга (mm)	19
диапазон крутящего момента (Nm мин-Макс)	203÷1627
макс. вращающий момент (Nm)	3390
скорость (об./мин.)	5000
Sound power dB(A)	115,4 ±3
Sound level dB(A)	104,4 ±3
ход поршня в минуту	1000
производительность	M38
давление воздуха (bar)	6,2
Резьба на впуске воздуха (")	1/2
Square drive (")	1
slag/min. (o/min.)	1000
momentområde (Nm min-Max)	203÷1627
lufttrykk (bar)	6,2
tilslutningsgjenger (")	1/2
Lydkraft dB(A)	115,4 ±3
Lydnivå dB(A)	104,4 ±3
gjennomsnitt luftforbruk (l/min)	480
vibrasjonsnivå (m/s²)	14,75
min. slange diameter (mm)	19
maks. Moment (Nm)	3390
kapasitet	M38
turtall (o/min)	5000
Boltkapacitet	M38
Lufttryk (bar)	6,2
Forskruning (“)	1/2
Firkantet drev (")	1
luftforbrug (l/min)	480
vibrationsniveau (m/s²)	14,75
slangedim. (mm)	19
moment i brug (Nm min-Maks)	203÷1627
maks. Moment (Nm)	3390
hastighed (omdr./min.)	5000
Lydeffekt dB(A)	115,4 ±3
Sound level dB(A)	104,4 ±3
Sound level dB(A)	104,4 ±3
Max torque (Nm)	3390
Free speed (rpm)	5000
Bolt capacity	M38
Strokes per minute	1000
Square drive (")	1
Recommended air pressure (bar)	6,2
Air inlet (")	1/2
Torque in use (Nm min-Max)	203÷1627
Average air consumption (l/min)	480
Vibrations (m/s²)	14,75
Sound power dB(A)	115,4 ±3
Average air consumption (l/min)	480
Vibrations (m/s²)	14,75
Sound power dB(A)	115,4 ±3
Ø hose size (mm)	19
Sound level dB(A)	104,4 ±3
Max torque (Nm)	3390
Otočky za minutu (rpm)	5000
Bolt capacity	M38
Strokes per minute	1000
Square drive (")	1
Air inlet (")	1/2
Recommended air pressure (bar)	6,2
Recommended air pressure (bar)	6,2
Torque in use (Nm min-Max)	203÷1627
Average air consumption (l/min)	480
Vibrations (m/s²)	14,75
Sound power dB(A)	115,4 ±3
Ø hose size (mm)	19
Sound level dB(A)	104,4 ±3
Max torque (Nm)	3390
Скорост	5000
Капацитет	M38
Strokes per minute	1000
Square drive (")	1
Udara u minuti	1000
Prihvat (")	1
Ulaz vazduha (")	1/2
Max. Pritisak (bar)	6,2
Opseg snage stezanja (Nm min-Max)	203÷1627
Prosečna potrošnja vazduha (l/mm)	480
Vibrations (m/s²)	14,75
Snaga zvuka dB(A)	115,4 ±3
Unutrašnji prečnik (mm)	19
Nivo buke dB(A)	104,4 ±3
Maksimalna snaga stezanja (Nm)	3390
Slobodna brzina (l/min)	5000
Bolt capacity	M38
Bătăi pe minut	1000
Pătrat de acționare	1
Air inlet (")	1/2
Presiunea aerului (bar)	6,2
Torque in use (Nm min-Max)	203÷1627
Average air consumption (l/min)	480
Nivel de vibraţii (m/s²)	14,75
Puterea zgomotului dB(A)	115,4 ±3
Ø hose size (mm)	19
Nivelul zgomotului dB(A)	104,4 ±3
Max torque (Nm)	3390
Ø węża wewnętrznego (mm)	19
Sound level dB(A)	104,4 ±3
Max torque (Nm)	3390
Free speed (rpm)	5000
Bolt capacity	M38
Strokes per minute	1000
Square drive (")	1
Wlot powietrza (")	1/2
Zalecane ciśnienie powietrza (bar)	6,2
Torque in use (Nm min-Max)	203÷1627
Średnie zużycie powietrza (l/min)	480
Wibracje (m/s²)	14,75
Sound power dB(A)	115,4 ±3
Sound level dB(A)	104,4 ±3
Square drive (")	1

Family details

Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Poids kg	Q.té par colis
Code	LxPxH mm	Peso kg	Cantidad por confección
Code	LxPxH mm	Peso kg	Número de peças por caixa
Code	LxPxH mm	gewicht kg	Hoeveelheid per pakket
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	vekt kg	mengde per pakke
Code	LxPxH mm	vægt kg	Mængde pr. pakke
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
U09420009	346x101x97	8	1
