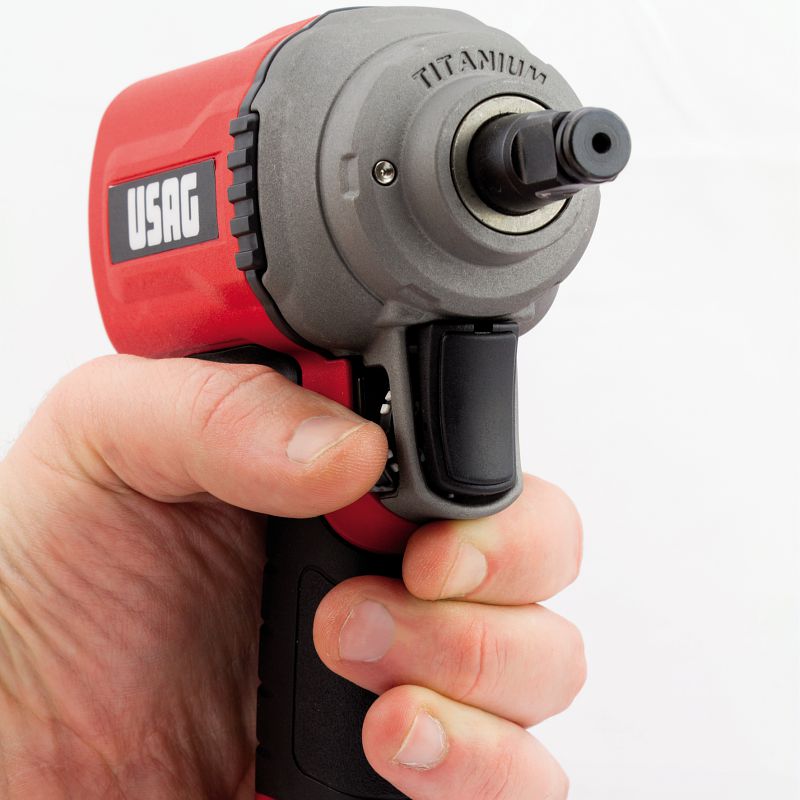

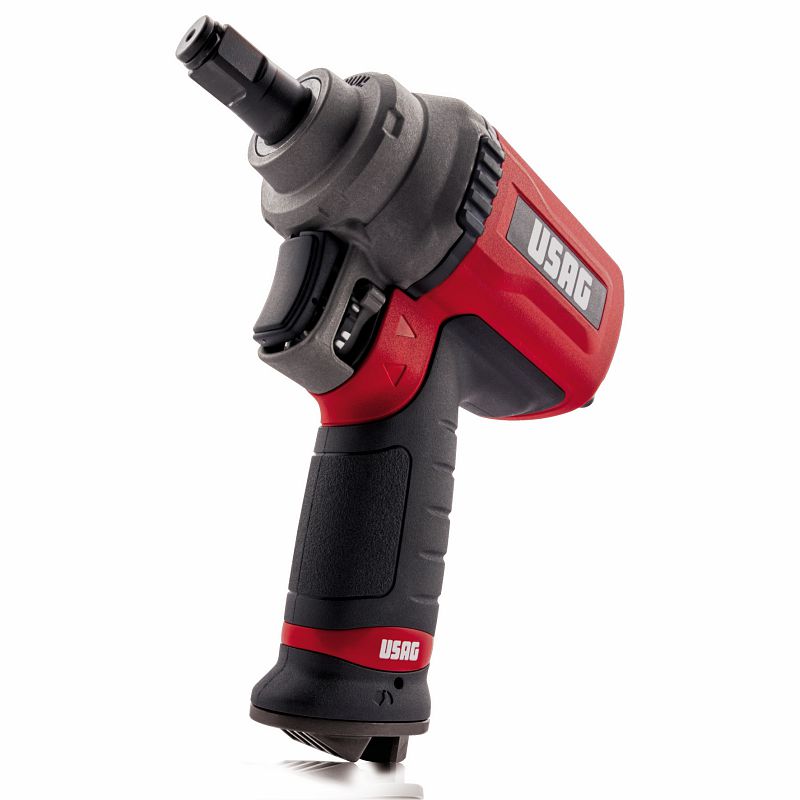

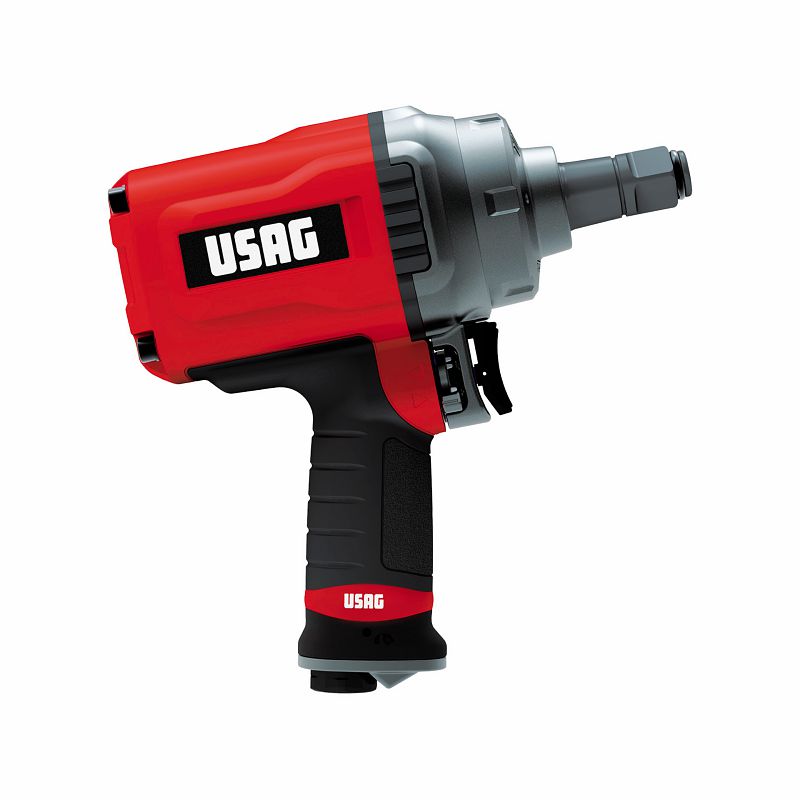

Impact wrench (Titanium structure)

Name: 942 PD1 3/4
Brand: Stanley Black & Decker Italia S.r.l.
Price: 962

942 PD1 3/4

en dk es fr nl no pt gr hu tr ru hr cz bg rs ro pl de

Reversible model with double hammer
One-piece motor
Air exhaust through the handle
3 tightening torque settings, always maximum untightening power
High-resistant material with Titanium front housing
Soft-touch bimaterial handle
Side soft bumpers
Balanced weight for maximum comfort even for intensive use
Spare rotor blades (6 pieces): code 30M100111

Features

Square drive (")	3/4
Strokes per minute	950
Air inlet (")	3/8
Recommended air pressure (bar)	6,2
Torque in use (Nm min-Max)	500÷800
Vibrations (m/s²)	5,06
Average air consumption (l/min)	200
Sound power dB(A)	108,8 ±3
Max torque (Nm)	2115
Free speed (rpm)	5300
Ø hose size (mm)	10
Sound level dB(A)	97,8 ±3
Bolt capacity	M27
Pression sonore dB(A)	97,8 ±3
Capacité	M27
Connexion carrée (")	3/4
Coups par minute (tours/minute)	950
Admission taraudée (")	3/8
Pression d'utilisation (bar)	6,2
Couple de travail (Nm min-max)	500÷800
Niveau vibrations (m/s²)	5,06
Consommation moyenne d'air (l/min)	200
Puissance sonore dB(A)	108,8 ±3
Couple maximum (Nm)	2115
Vitesse (tours/minute)	5300
Diámetro interno minimo del tubo aire (mm)	10
Par máximo (Nm)	2115
Velocidad (giros/min)	5300
Capacidad	M27
Square drive (")	3/4
Impactos/minuto (giros/min)	950
Conexión fileteada (")	3/8
Présion ejercida (bar)	6,2
Par de apriete (Nm min-Max)	500÷800
Nivel vibraciones (m/s²)	5,06
Consumo medio aire (l/min)	200
Sound power dB(A)	108,8 ±3
nível vibrações (m/s²)	5,06
consumo médio de ar (l/min)	200
Sound power dB(A)	108,8 ±3
Sound level dB(A)	97,8 ±3
diâmetro interno mínimo do tubo de ar (mm)	10
binário máximo (Nm)	2115
velocidade (rpm)	5300
Capacidade	M27
Square drive (")	3/4
batimentos por minuto (rpm)	950
Ligação rosca (")	3/8
pressão exercida (bar)	6,2
werkdruk (bar)	6,2
koppelbereik (Nm min-max)	500÷800
trillingsniveau (m/s²)	5,06
gemiddeld luchtverbruik (l/min)	200
Sound power dB(A)	108,8 ±3
Sound level dB(A)	97,8 ±3
minimum inwendige slangdiameter (mm)	10
maximum koppel (Nm)	2115
onbelast toerental (t.p.m.)	5300
capaciteit	M27
Square drive (")	3/4
aantal slagen per minuut (t.p.m.)	950
Square drive (")	3/4
κρούσεις ανά λεπτό (στροφές/λεπτό)	950
σπείρωμα εισόδου (")	3/8
πίεση λειτουργίας (bar)	6,2
Torque in use (Nm min-Max)	500÷800
επίπεδο κραδασμών (m/s²)	5,06
μέση κατανάλωση αέρα (l/min)	200
Sound power dB(A)	108,8 ±3
Sound level dB(A)	97,8 ±3
ελάχιστη εσωτερική Ø σωλήνας αέρα (mm)	10
μέγιστη ροπή (Nm)	2115
ταχύτητα (στροφές/λεπτό)	5300
sebesség	5300
Csavar kapacitás	M27
Square drive (")	3/4
löketszám/perc	950
Levegő csatlakozás (")	3/8
levegő nyomás (bar)	6,2
Nyomaték tartomány (Nm min-max)	500÷800
rezgésszint (m/s²)	5,06
átlagos levegő fogyasztás (l/min)	200
Sound power dB(A)	108,8 ±3
Sound level dB(A)	97,8 ±3
Ø min. cső méret (mm)	10
Sound level dB(A)	97,8 ±3
titreşim seviyesi (m/s²)	5,06
ortalama hava tüketimi (l/min)	200
Ø en düşük hortum ebatı (mm)	10
Maksimum tork (Nm)	2115
kapasite	M27
hız	5300
Square drive (")	3/4
Dakikadaki vuruş	950
Hava Girişi (")	3/8
Tork aralığı (Nm min-Max)	500÷800
hava basıncı (bar)	6,2
среднее потребление сжатого воздуха (l/min)	200
мин. диаметр шланга/мин. Ø шланга (mm)	10
диапазон крутящего момента (Nm мин-Макс)	500÷800
макс. вращающий момент (Nm)	2115
Sound power dB(A)	108,8 ±3
скорость (об./мин.)	5300
Sound level dB(A)	97,8 ±3
ход поршня в минуту	950
Резьба на впуске воздуха (")	3/8
давление воздуха (bar)	6,2
производительность	M27
Square drive (")	3/4
slag/min. (o/min.)	950
tilslutningsgjenger (")	3/8
momentområde (Nm min-Max)	500÷800
lufttrykk (bar)	6,2
Lydkraft dB(A)	108,8 ±3
Lydnivå dB(A)	97,8 ±3
vibrasjonsnivå (m/s²)	5,06
gjennomsnitt luftforbruk (l/min)	200
min. slange diameter (mm)	10
maks. Moment (Nm)	2115
kapasitet	M27
turtall (o/min)	5300
Boltkapacitet	M27
Forskruning (“)	3/8
Lufttryk (bar)	6,2
Firkantet drev (")	3/4
vibrationsniveau (m/s²)	5,06
luftforbrug (l/min)	200
slangedim. (mm)	10
moment i brug (Nm min-Maks)	500÷800
maks. Moment (Nm)	2115
Lydeffekt dB(A)	108,8 ±3
hastighed (omdr./min.)	5300
Sound level dB(A)	97,8 ±3
Ø hose size (mm)	10
Max torque (Nm)	2115
Free speed (rpm)	5300
Bolt capacity	M27
Square drive (")	3/4
Strokes per minute	950
Recommended air pressure (bar)	6,2
Air inlet (")	3/8
Torque in use (Nm min-Max)	500÷800
Vibrations (m/s²)	5,06
Average air consumption (l/min)	200
Sound power dB(A)	108,8 ±3
Vibrations (m/s²)	5,06
Average air consumption (l/min)	200
Sound power dB(A)	108,8 ±3
Sound level dB(A)	97,8 ±3
Ø hose size (mm)	10
Max torque (Nm)	2115
Otočky za minutu (rpm)	5300
Bolt capacity	M27
Square drive (")	3/4
Strokes per minute	950
Recommended air pressure (bar)	6,2
Air inlet (")	3/8
Air inlet (")	3/8
Torque in use (Nm min-Max)	500÷800
Vibrations (m/s²)	5,06
Average air consumption (l/min)	200
Sound power dB(A)	108,8 ±3
Sound level dB(A)	97,8 ±3
Ø hose size (mm)	10
Max torque (Nm)	2115
Скорост	5300
Капацитет	M27
Square drive (")	3/4
Strokes per minute	950
Prihvat (")	3/4
Udara u minuti	950
Max. Pritisak (bar)	6,2
Ulaz vazduha (")	3/8
Opseg snage stezanja (Nm min-Max)	500÷800
Vibrations (m/s²)	5,06
Prosečna potrošnja vazduha (l/mm)	200
Snaga zvuka dB(A)	108,8 ±3
Nivo buke dB(A)	97,8 ±3
Unutrašnji prečnik (mm)	10
Maksimalna snaga stezanja (Nm)	2115
Slobodna brzina (l/min)	5300
Bolt capacity	M27
Pătrat de acționare	3/4
Bătăi pe minut	950
Presiunea aerului (bar)	6,2
Air inlet (")	3/8
Torque in use (Nm min-Max)	500÷800
Nivel de vibraţii (m/s²)	5,06
Average air consumption (l/min)	200
Puterea zgomotului dB(A)	108,8 ±3
Nivelul zgomotului dB(A)	97,8 ±3
Ø hose size (mm)	10
Max torque (Nm)	2115
Sound level dB(A)	97,8 ±3
Ø węża wewnętrznego (mm)	10
Max torque (Nm)	2115
Free speed (rpm)	5300
Bolt capacity	M27
Square drive (")	3/4
Strokes per minute	950
Wlot powietrza (")	3/8
Zalecane ciśnienie powietrza (bar)	6,2
Torque in use (Nm min-Max)	500÷800
Wibracje (m/s²)	5,06
Średnie zużycie powietrza (l/min)	200
Sound power dB(A)	108,8 ±3
Sound level dB(A)	97,8 ±3
Square drive (")	3/4

Family details

Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Poids kg	Q.té par colis
Code	LxPxH mm	Peso kg	Cantidad por confección
Code	LxPxH mm	Peso kg	Número de peças por caixa
Code	LxPxH mm	gewicht kg	Hoeveelheid per pakket
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	vekt kg	mengde per pakke
Code	LxPxH mm	vægt kg	Mængde pr. pakke
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
U09420004	227x97x227	3,8	1
